bombas sumergibles franklin serie SSI



Regresar

Dimensiones

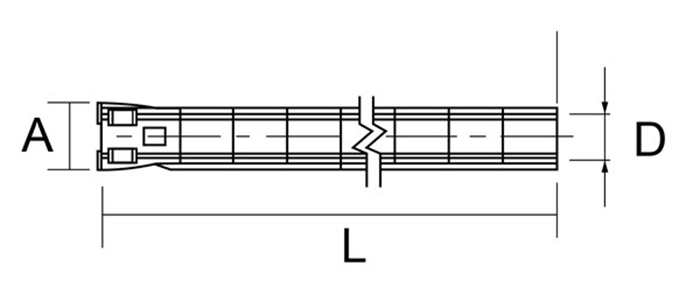

Dimensiones Bomba sumergible Franklin SSI



Bomba SSI 6in

GPM MODELO DESCRIPCIÓN HP DIAM.
MOTOR		 DESC. ETAPAS DIMENSIONES (MM) A PESO (KG)
L L BOMBA 6"-4" 6"-6"
6"-4" 6"-6"
85 9720600850004 85SSI05F66-0443 5 4 3" NPT 4 512 - 133 10 -
9720600850007 85SSI07F66-0743 7,5 4 7 693 693 133 10 -
9720600850107 85SSI07F66-0763 7,5 6 7 693 693 133 14 15
9720600850109 85SSI10F66-0963 10 6 9 814 814 133 16 17
9720600850112 85SSI15F66-1263 15 6 12 - 996 133 - 21
9720600850114 85SSI15F66-1463 15 6 14 - 1117 133 - 23
85 9720600850118 85SSI20F66-1863 20 6 3" NPT 18 - 1359 133 - 28
9720600850120 85SSI20F66-2063 20 6 20 - 1480 133 - 30
9720600850123 85SSI25F66-2363 25 6 23 - 1677 133 - 35
9720600850125 85SSI25F66-2563 25 6 25 - 1798 133 - 37
9720600850127 85SSI30F66-2763 30 6 27 - 1919 133 - 40
150 9720601500004 150SSI07F66-0443 7,5 4 3" NPT 4 652 652 133 12 15
9720601500104 150SSI07F66-0463 7,5 6 4 652 652 133 12 15
9720601500106 150SSI10F66-0663 10 6 6 - 844 133 16 18
9720601500107 150SSI15F66-0763 15 6 7 - 940 133 - 19
9720601500108 150SSI15F66-0863 15 6 8 - 1036 133 - 21
9720601500110 150SSI20F66-1063 20 6 10 - 1228 133 - 24
9720601500112 150SSI20F66-1263 20 6 12 - 1420 133 - 27
9720601500115 150SSI25F66-1563 25 6 15 - 1708 133 - 31
9720601500117 150SSI30F66-1763 30 6 17 - 1900 133 - 34
9720601500119 150SSI30F66-1963 30 6 19 - 2092 133 - 37
9720601500124 150SSI40F66-2463 40 6 24 - 2588 133 - 45
225 9720602251104 225SSI10F66-0464 10 6 4" NPT 4 - 724 145 - 14
9720602251105 225SSI15F66-0564 15 6 5 - 837 145 - 16
9720602251106 225SSI15F66-0664 15 6 6 - 960 145 - 18
9720602251107 225SSI20F66-0764 20 6 7 - 1063 145 - 20
9720602251108 225SSI20F66-0864 20 6 8 - 1176 145 - 22
9720602251109 225SSI20F66-0964 20 6 9 - 1289 145 - 24
9720602251111 225SSI25F66-1164 25 6 11 - 1515 145 - 29
9720602251113 225SSI30F66-1364 30 6 13 - 1741 145 - 33
9720602251116 225SSI40F66-1664 40 6 16 - 2080 145 - 39
9720602251118 225SSI40F66-1864 40 6 18 - 2306 145 - 43
9720602251121 225SSI50F66-2164 50 6 21 - 2661 145 - 50
260 9720602601103 260SSI10F66-0364 10 6 4" NPT 3 - 611 145 - 12
9720602601104 260SSI15F66-0464 15 6 4 - 724 145 - 14
9720602601105 260SSI15F66-0564 15 6 5 - 837 145 - 16
9720602601106 260SSI20F66-0664 20 6 6 - 950 145 - 18
9720602601107 260SSI25F66-0764 25 6 7 - 1063 145 - 20
9720602601108 260SSI25F66-0864 25 6 8 - 1176 145 - 22
9720602601110 260SSI30F66-1064 30 6 10 - 1402 145 - 26
9720602601113 260SSI40F66-1364 40 6 13 - 1741 145 - 33
9720602601116 260SSI50F66-1664 50 6 16 - 2080 145 - 39
9720602601119 260SSI60F66-1964 60 6 19 - 2419 145 - 45
300 9720603001104 300SSI15F66-0464 15 6 4" NPT 4 - 724 149 - 14
9720603001106 300SSI20F66-0664 20 6 6 - 950 149 - 18
9720603001107 300SSI25F66-0764 25 6 7 - 1063 149 - 20
9720603001109 300SSI30F66-0964 30 6 9 - 1289 149 - 24
9720603001112 300SSI40F66-1264 40 6 12 - 1026 149 - 30
9720603001114 300SSI50F66-1464 50 6 14 - 1854 149 - 34
9720603001117 300SSI60F66-1764 60 6 17 - 2193 149 - 40

Regresar



Bomba SSI 8in

GPM MODELO DESCRIPCIÓN HP DIAM.
MOTOR		 DESC. ETAPAS DIMENSIONES (MM) PESO (KG)
L L A
8"- 6"		 A
8"- 8"		 8"- 6" 8"- 8"
8"- 6" 8"- 8"
425 617720301020082 425SSI25F86-0365 25 6 5" NPT 3 826 - 174 - 29 -
617720401020082 425SSI30F86-0465 30 6 4 954 - 174 - 32 -
617720501020082 425SSI40F86-0565 40 6 5 1082 1093 174 182 35 36
617720601020082 425SSI50F86-0665 50 6 6 1210 1221 174 182 39 40
617720701020082 425SSI50F86-0765 50 6 7 1338 1349 174 182 42 44
617720801020082 425SSI60F86-0865 60 6 8 1466 1477 174 182 45 48
617721002020082 425SSI75F86-1085 75 8 10 - 1733 - 182 - 55
617721102020082 425SSI100F86-1185 100 8 11 - 1861 - 182 - 59
617721302020082 425SSI100F86-1385 100 8 13 - 2117 - 182 - 67
475 617960301020082 475SSI25F86-0365 25 6 5" NPT 3 826 - 174 - 29 -
617960401020082 475SSI40F86-0465 40 6 4 954 965 174 182 32 35
617960501020082 475SSI40F86-0565 40 6 5 1082 1093 174 182 35 37
617960601020082 475SSI50F86-0665 50 6 6 1210 1221 174 182 38 40
617960701020082 475SSI60F86-0765 60 6 7 1338 1349 174 182 41 42
617960802020082 475SSI75F86-0885 75 8 8 - 1477 - 182 - 45
617961002020082 475SSI100F86-1085 100 8 10 - 1733 - 182 - 50
617961102020082 475SSI100F86-1185 100 8 11 - 1861 - 182 - 53
617961202020082 475SSI100F86-1285 100 8 12 - 1989 - 182 - 55
617961402020082 475SSI125F86-1485 125 8 14 - 2245 - 182 - 60
617961502020082 475SSI125F86-1585 125 8 15 - 2373 - 182 - 63

Regresar



Bomba SSI 10in

GPM MODELO DESCRIPCIÓN HP

DIAM.

MOTOR

 DESCARGA ETAPAS L L A PESO (KG) PESO (KG)
10"-6" 10"-8" BOMBA 10"-6" 10"-8"
550 9721005503102 550SSI40F106-0266 40 6 6" NPT 2 764 764 208 36 37
9721005503103 550SSI50F106-0366 50 6 3 920 920 208 42 43
9721005503204 550SSI75F106-0486 75 8 4 - 1076 208 - 50
9721005503205 550SSI100F106-0586 100 8 5 - 1232 208 - 55
9721005503206 550SSI100F106-0686 100 8 6 - 1388 208 - 62
9721005503207 550SSI125F106-0786 125 8 7 - 1544 208 - 68
9721005503208 550SSI150F106-0886 150 8 8 - 1700 208 - 74
9721005503209 550SSI150F106-0986 150 8 9 - 1856 208 - 80
625 9721006253102 625SSI40F106-0266 40 6 6" NPT 2 764 764 208 36 37
9721006253103A 625SSI50F106-03A66 50 6 3A 920 920 208 42 43
9721006253103 625SSI60F106-0366 60 6 3 920 920 208 42 43
9721006253204A 625SSI75F106-04A86 75 8 4A - 1076 208 - 50
9721006253204 625SSI100F106-0486 80 8 4 - 1076 208 - 50
9721006253205 625SSI100F106-0586 100 8 5 - 1232 208 - 55
9721006253206A 625SSI125F106-06A86 125 8 6A - 1388 208 - 62
9721006253206 625SSI125F106-0686 125 8 6 - 1388 208 - 62
9721006253207 625SSI150F106-0786 150 8 7 - 1544 208 - 68
9721006253208 625SSI150F106-0886 150 8 8 - 1700 208 - 68
825 9721008253102 825SSI50F106-0266 50 6 6" NPT 2 764 764 208 36 37
9721008253103A 825SSI60F106-03A66 75 6 3A 920 920 208 43 43
9721008253203 825SSI75F106-0386 75 8 3 920 920 208 - 43
9721008253204A 825SSI100F106-04A86 100 8 4A   1076 208 - 50
9721008253204 825SSI100F106-0486 100 8 4 - 1076 208 - 50
9721008253205 825SSI125F106-0586 125 8 5 - 1232 208 - 56
9721008253206 825SSI150F106-0686 150 8 6 - 1388 208 - 63



Regresar
